JHY-CM6L Inline automatic capping equipment 6 Wheels Plastic Bottle Twist Capping Machine
JHY-CM6L Inline automatic capping equipment 6 Wheels Plastic Bottle Twist Capping Machine

JHY-CM6L Inline automatic capping equipment 6 Wheels Plastic Bottle Twist Capping Machine

Product Attributes :

1.One-to-one video chat support

2.Fully automatic machine

3.Installation and commissioning video

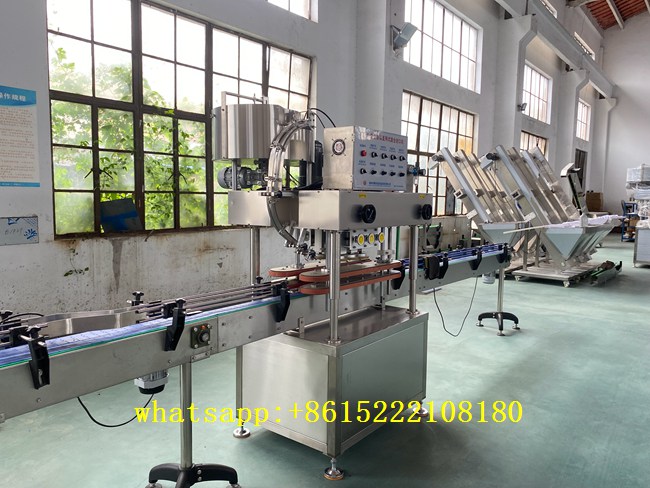

 Lnline automatic capping equipment

This is automatic capping equipment, a 6-wheel capping machine. It can be used in conjunction with a filling machine line.

No additional accessories are required, and it can be adjusted to accommodate bottles of various shapes and specifications.

Parameters

  • Machine model: JHY-CM6L
  • Power supply: 220V 50Hz
  • Bottle height:40-250mm
  • Bottle Caps Diameter:15-90mm
  • Working speed: 6000bottles/H
  • Working pressure:0.6-0.8MPa
  • Machine size:About 2000*1000*2000mm
  • Weight: 400kg

The automatic capping equipment is made of stainless steel and has a long service life.

It can automatically screw the cap onto the bottle with high speed and efficiency.

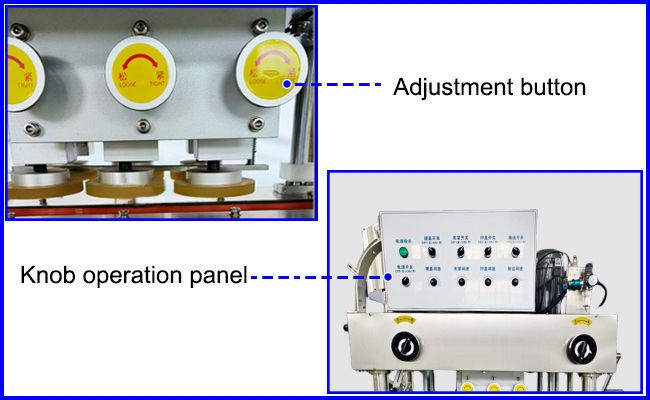

The tightness of the cap can be adjusted, equipped with a traditional knob design.

The panel is clear and one-touch on and off. Safe and easy to operate.

The part that fixes the bottle is a sponge strip, which does not damage the bottle. The chain conveyor belt ensures smooth conveying.

Four rubber wheels are used to tighten the bottle cap. This screw-on cap structure is suitable for various bottle caps such as spray bottles, pump bottles, dropper bottles, etc.
